Free End Interlinked Fingerweaving
Double Chevron [W] pattern [S] Twist [worked right to left]

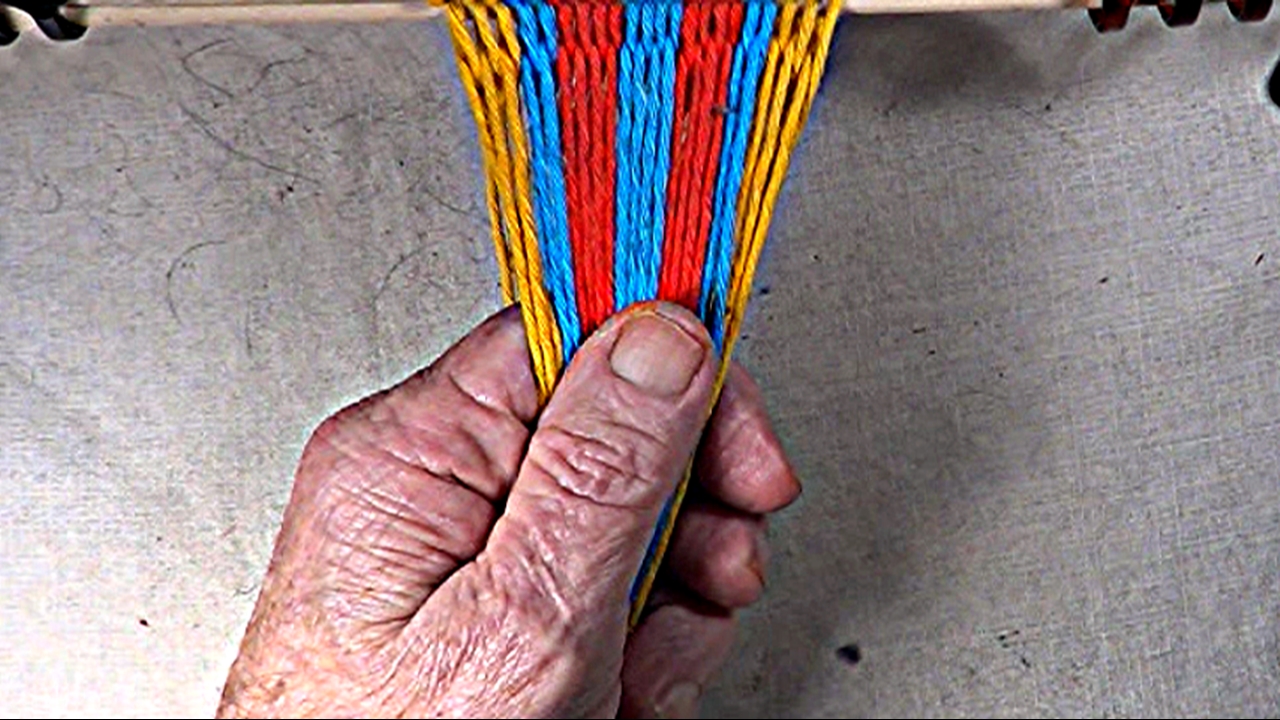

Headstick Set Up

Double chevron [W] pattern [S] twist interlinked fingerweaving tutorial patter will be worked from the right hand side to the left hand side of the workpiece.

The hedstick is set up using two contrasting colors for the chevron pattern and a third color for borders.

The total number of strands of each color must be divisible by four.

For this tutorial the strands are cast on to the headstick in the following order:
6 [border color], 4 [color 1], 8 [color 2], 8 [color 1], 8 [color 2], 4 [color 1],6 [border color].

The shed is picked up on the index finger of the left hand. The bottom layer of the shed is under the index finger. The top layer of the shed is over the index finger.

[NOTE] The headstick is set up so that the first strand on the right hand side of the workpiece is in the bottom layer of the shed.

[figure-1]

Go to: Top of page

First Pass--Section One

Start on the right hand side of the workpiece, weave [S] twist interlink fingerweaving until one strand of the border color band is unused.

[figure-2] [click here to see video]

First Pass--Section One

[NOTE] The strands of the first chevron color band on the right hand side are used as twining strands.

[NOTE] The twining strand form the legs of the cheveron pattern.

Pass the first top shed strand of second chevron color band through the shed of the first set of twining strands.

[figure-3] [click here to see video]

First Pass--Section One

Complete the [S] twist link of the second chevron color band to the border color band.

[NOTE] This link to the border color band forms the beginning of the right hand leg of the next right hand chevron.

[figure-4] [click here to see video]

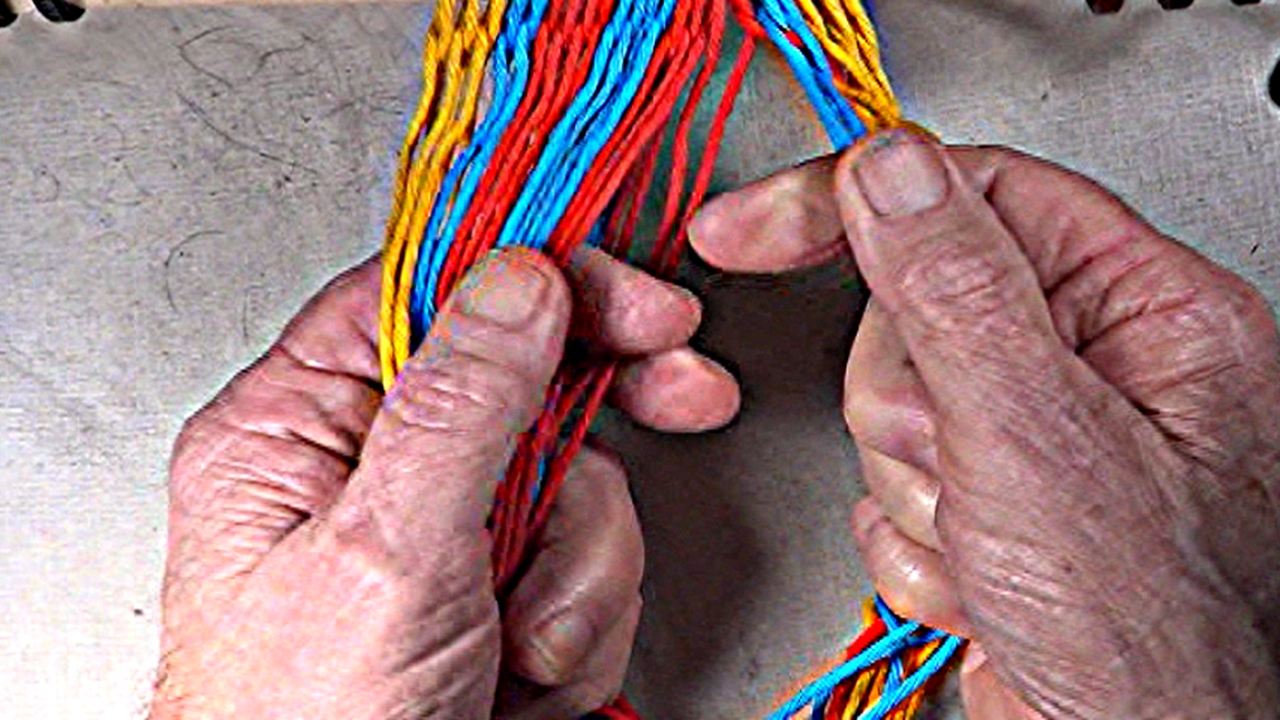

First Pass--Section One

[S] twist twine the first set of twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[NOTE]The first set of twining strands will become the right hand leg of the first right hand point down cheveron.

[figure-5] [click here to see video]

First Pass--Section One

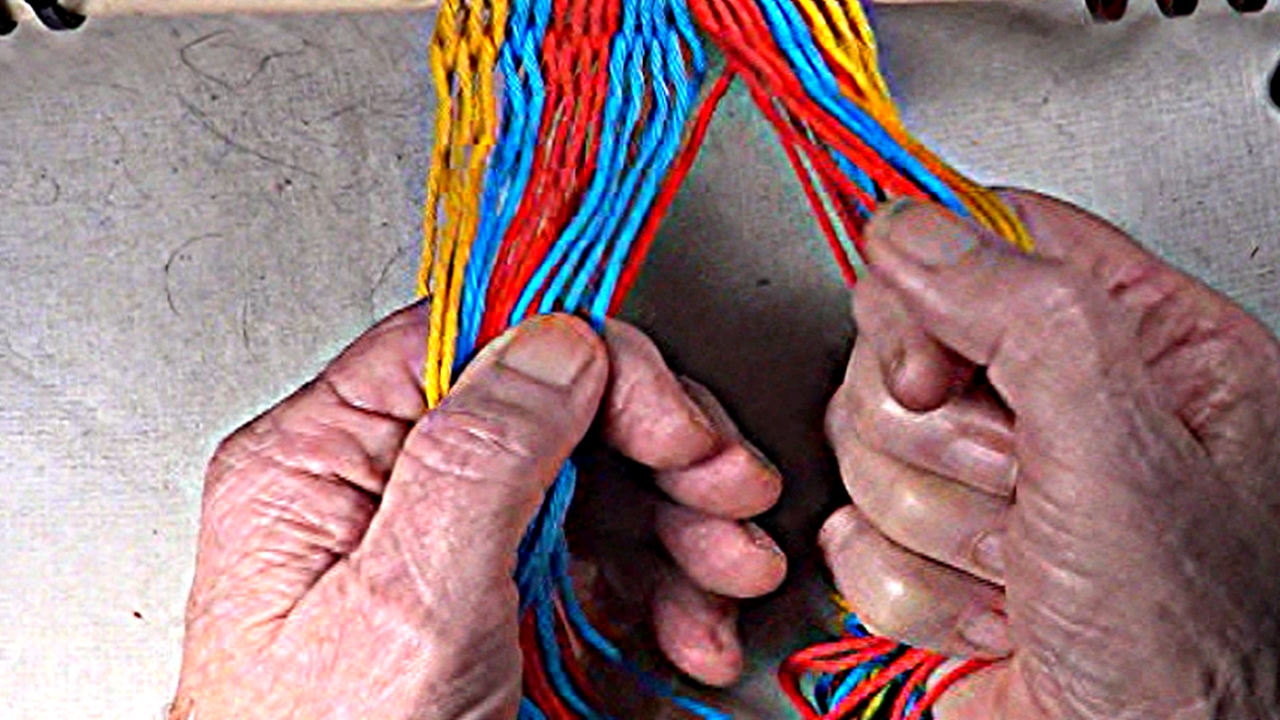

Continue [S] twist interlink weaving of the second chevron color band of the workpiece.

Stop when there is one unused strand of the second chevron color band.

[figure-6] [click here to see video]

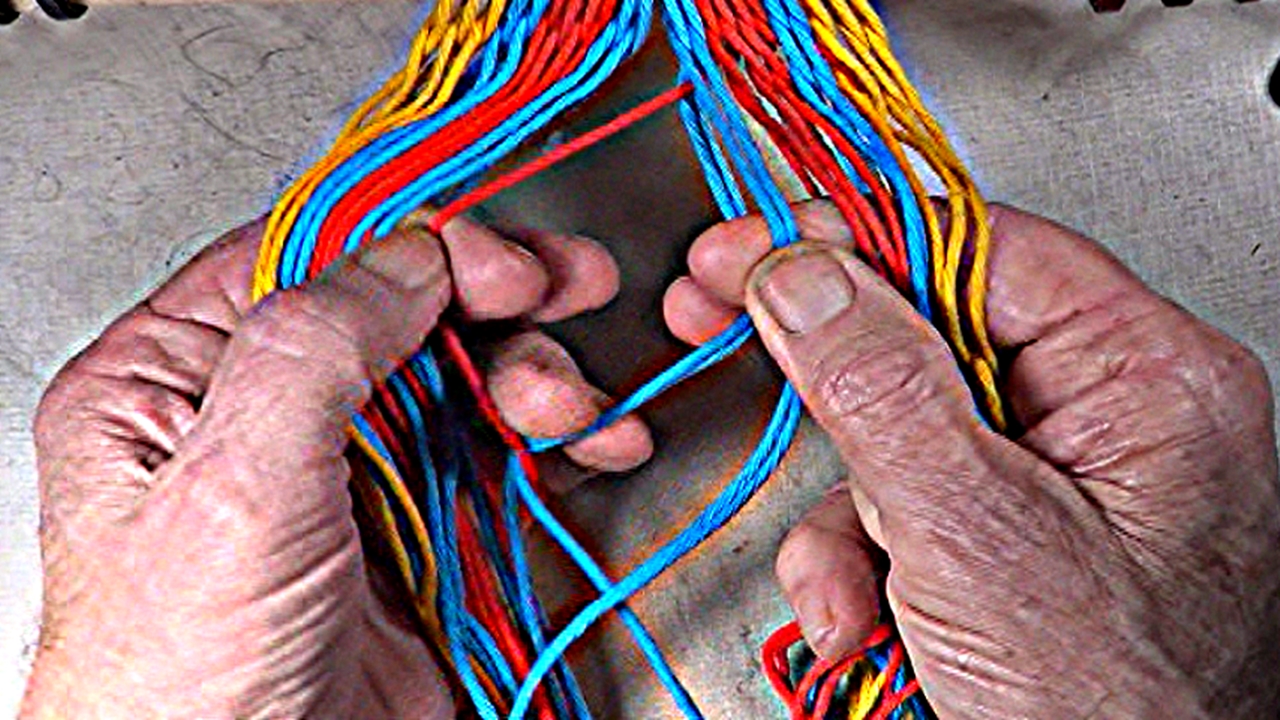

First Pass--Section One

[NOTE] The center chevron color band is the same color as the first chevron color band and will be used as two sets of twining strands.The second and third set of twining strands.

[NOTE] These two sets of twining strand will be the adjacent legs of the two point down cheverons and also the legs of the point up cheveron.

Pass the unused strand of the second chevron color band through the shed of the second set of twining strands to the midle of the workpiece.

[figure-7] [click here to see video]

First Pass--Section One

[S] twist twine the right hand side of the middle color band twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[NOTE]The second set of twining strands will become the left hand leg of the right hand point down cheveron and also the right hand leg of the point up chevron.

[figure-8] [click here to see video]

First Pass--Section One

[NOTE] The left hand half of the center color band is used as the third set of twining strands.

[NOTE] The second chevron color band from the left hand edge of the workpiece is the same color as the second chevron color band from the right hand edge of the workpiece.

Pass the first top shed strand of the left hand side second cheveron color band through the shed of the third set of twining strands.

[figure-9] [click here to see video]

First Pass--Section One

Complete the [S] twist link of the left hand side second color band to the right hand side of second color band.

[NOTE] This link forms the apex of the next point up part of the [W] pattern of the double chevron.

[figure-10] [click here to see video]

First Pass--Section One

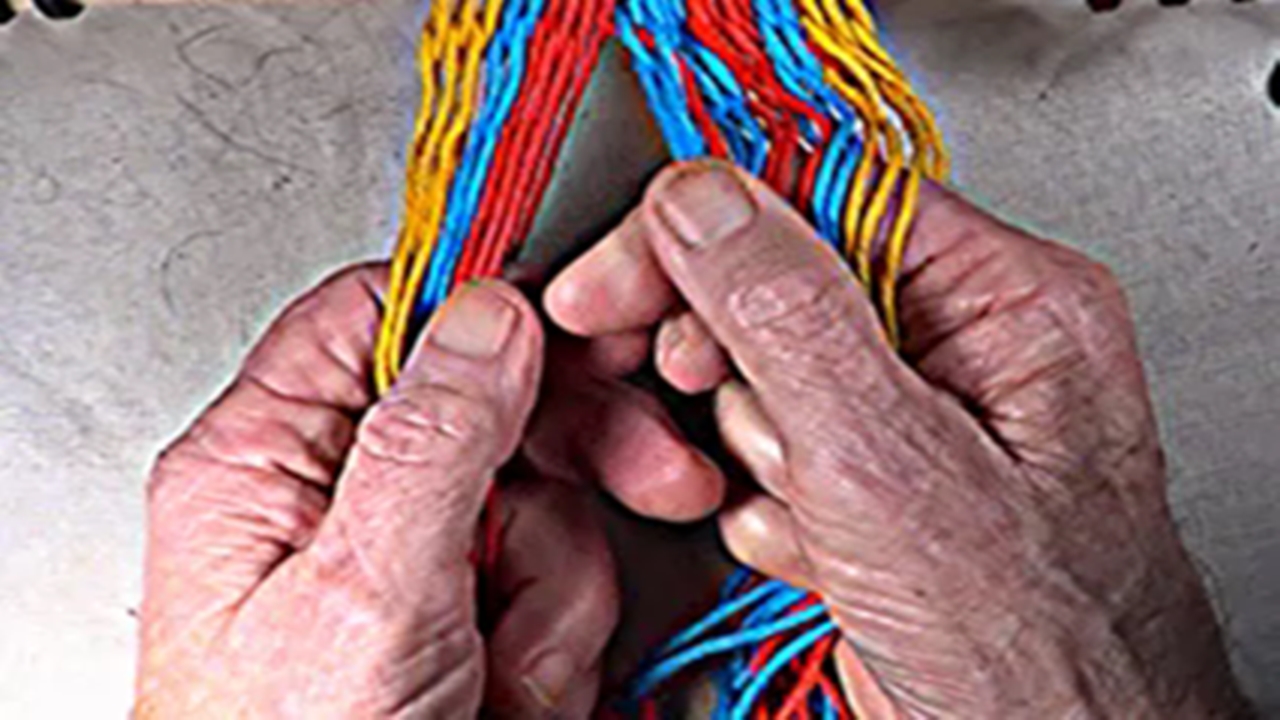

[S] twist twine the the third set of twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[NOTE]The third set of twining strands will become the right hand leg of the left hand point down cheveron and also the left hand leg of the point up chevron.

[figure-11] [click here to see video]

First Pass--Section One

[NOTE] The first chevron color band from the left hand side of the workpiece will be used as the fourth set of twining strands

[S] twist interlink fingerweaving the left hand side second chevern color band.

Stop when there is one unused strand before the fourth set of twining band.

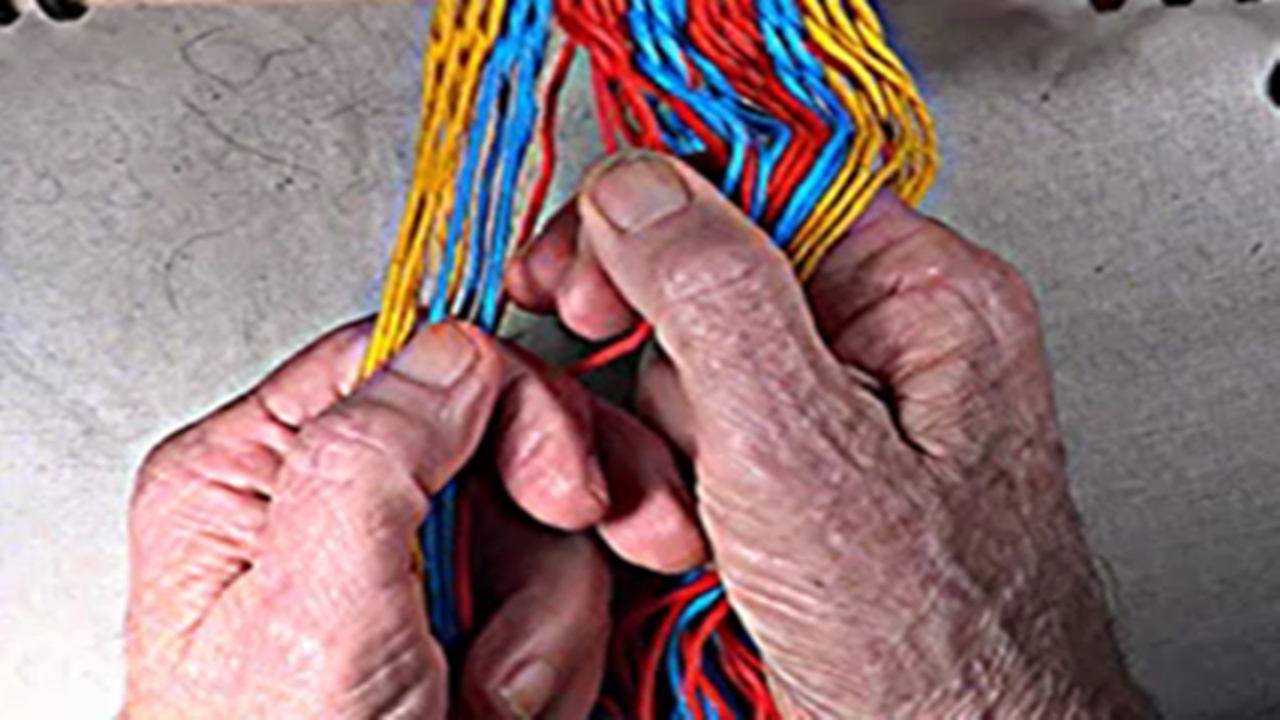

[figure-12] [click here to see video]

First Pass--Section One

Pass the unused strand of the left hand second color band through the shed of the fourth set of twining strands.

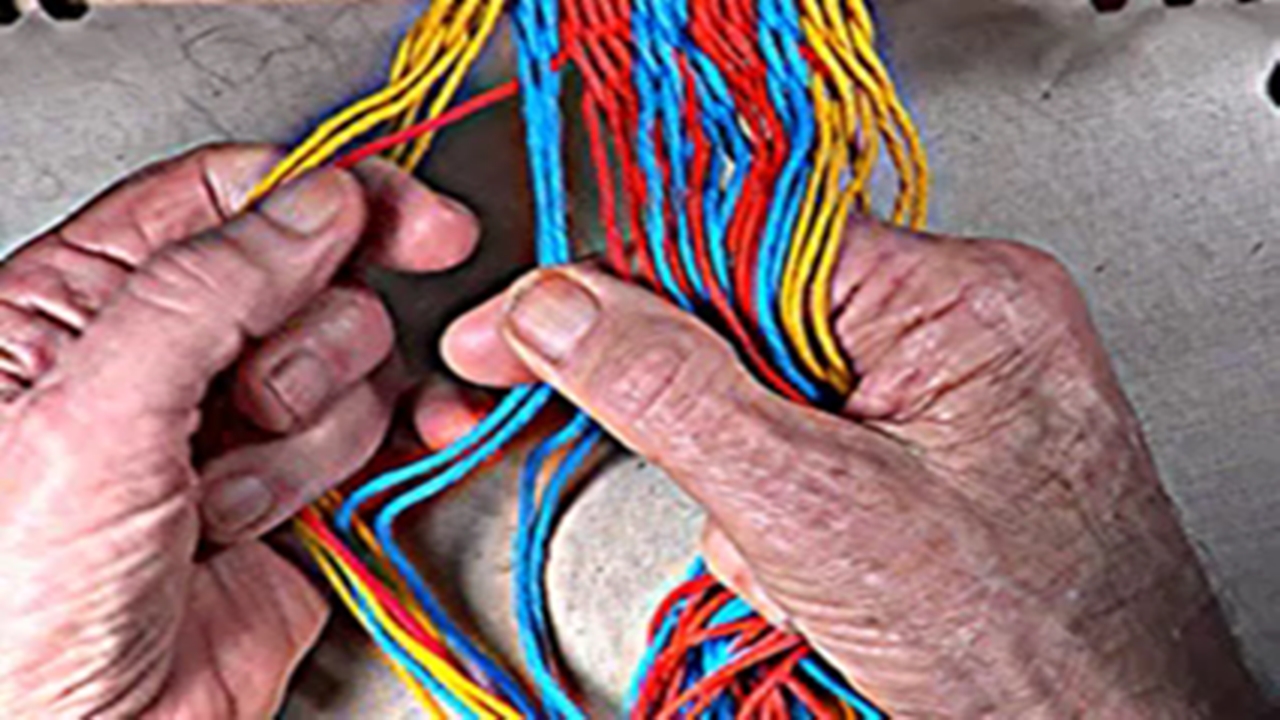

[figure-13] [click here to see video]

First Pass--Section One

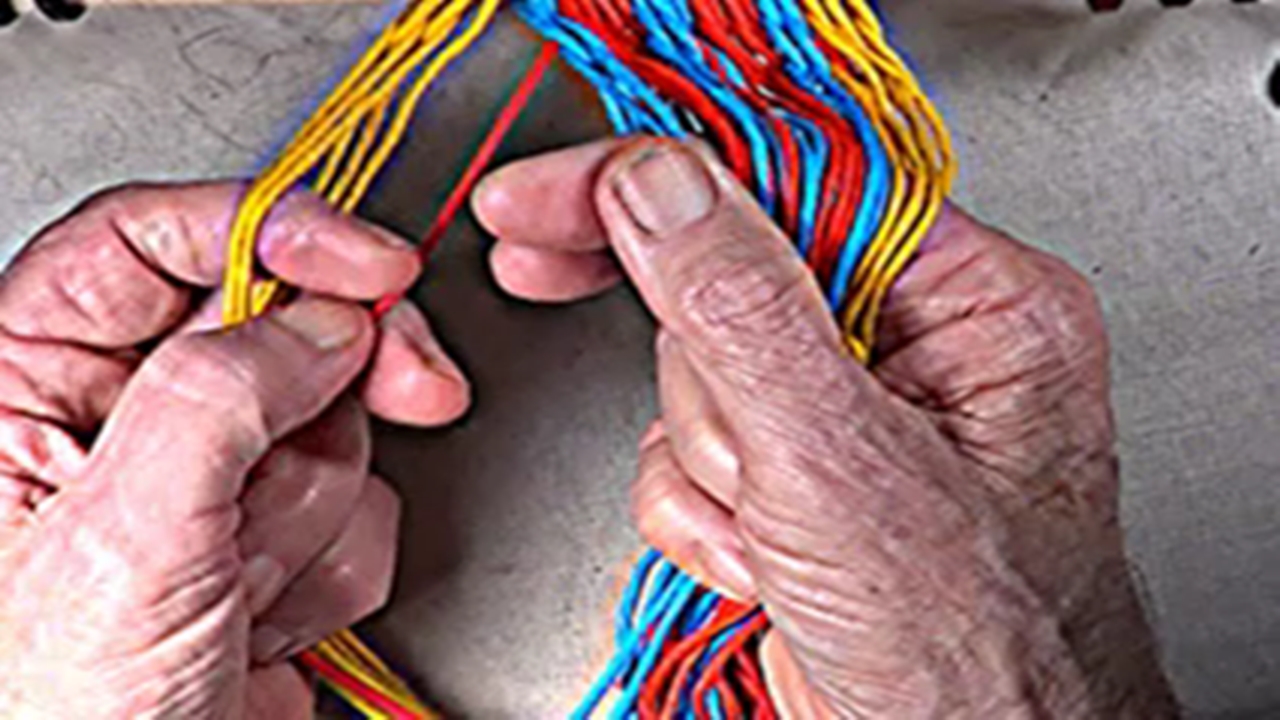

[S] twist twine the fourth set twining color strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[NOTE]The fourth set of twining strands will become the left hand leg of the left hand point down cheveron.

[figure-14] [click here to see video]

First Pass--Section One

Finish the first pass of section one of interlinked fingerweaving by linking the border color band to the unused strand of the left hand side second color band.

[figure-15] [click here to see video]

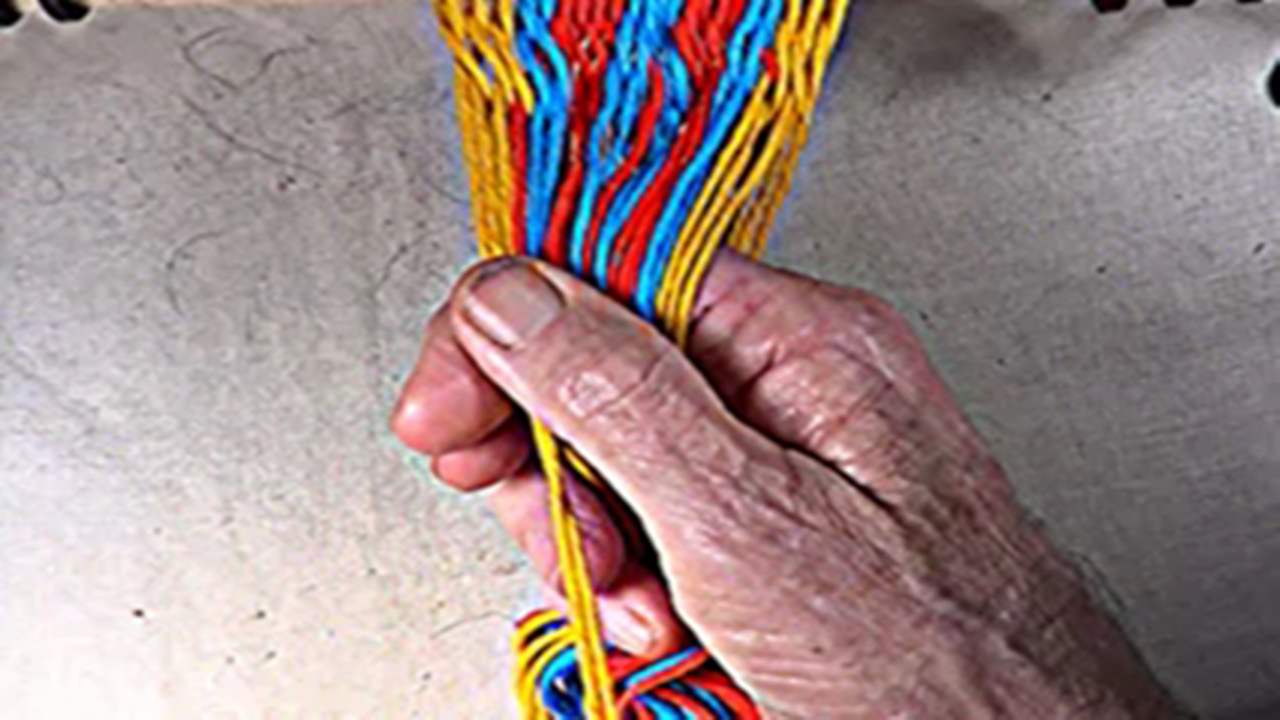

First Pass--Section One

Set the weave by pulling the layers of the shed in opposite directions.

Check to see that there are no loose strands.

[figure-16] [click here to see video]

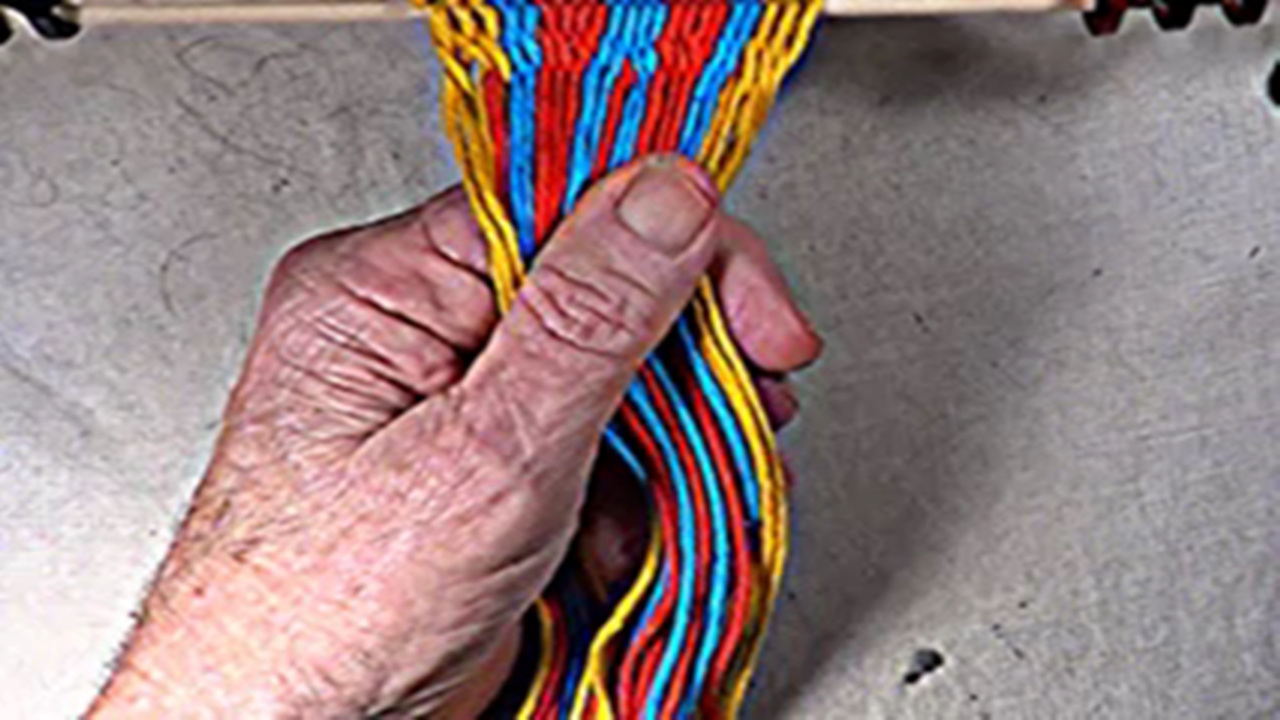

Second Pass--Section One

Start on the right hand side of the workpiece, weave [S] twist interlink fingerweaving until there is only one unused strand before the first set of twining strands.

[OBSERVE] The unused strand is a second chevron color band.

[figure-17] [click here to see video]

Second Pass--Section One

Pass the next top shed strand of second chevron color band through the shed of the first set of twining strands.

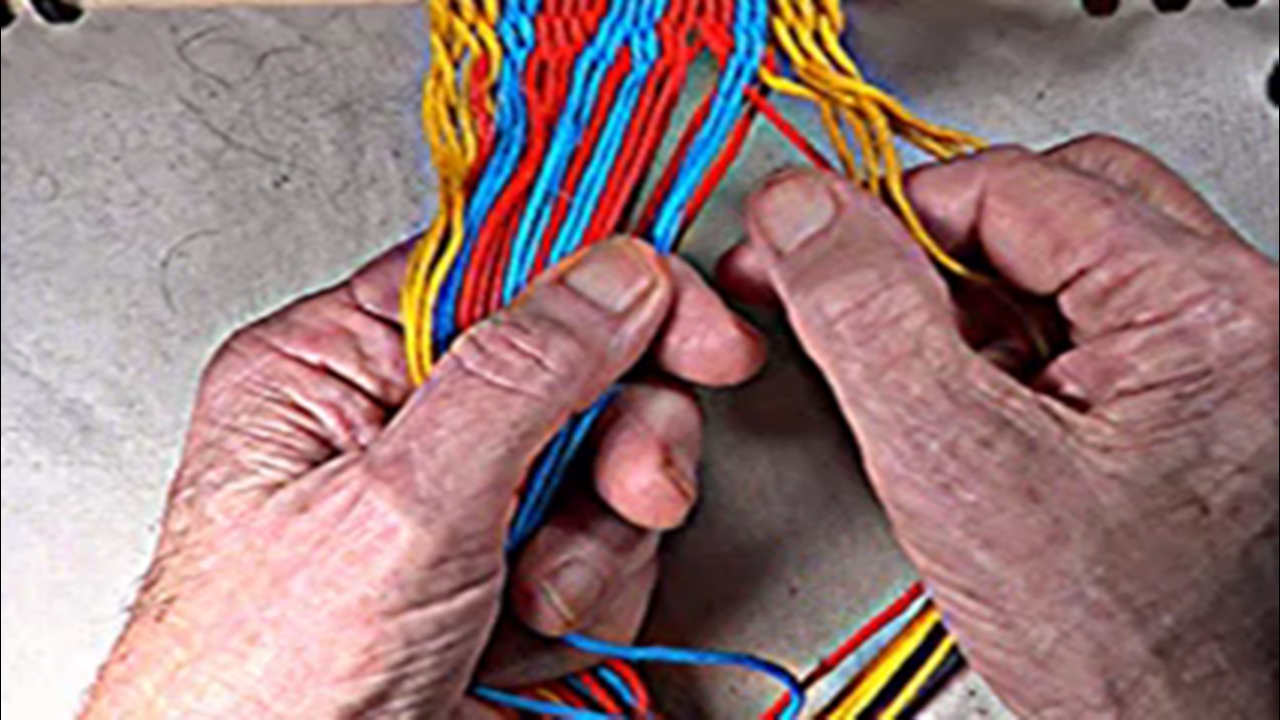

[figure-18] [click here to see video]

Second Pass--Section One

Complete the [S] twist link of the second chevron color band to the unused strand of the previous step.

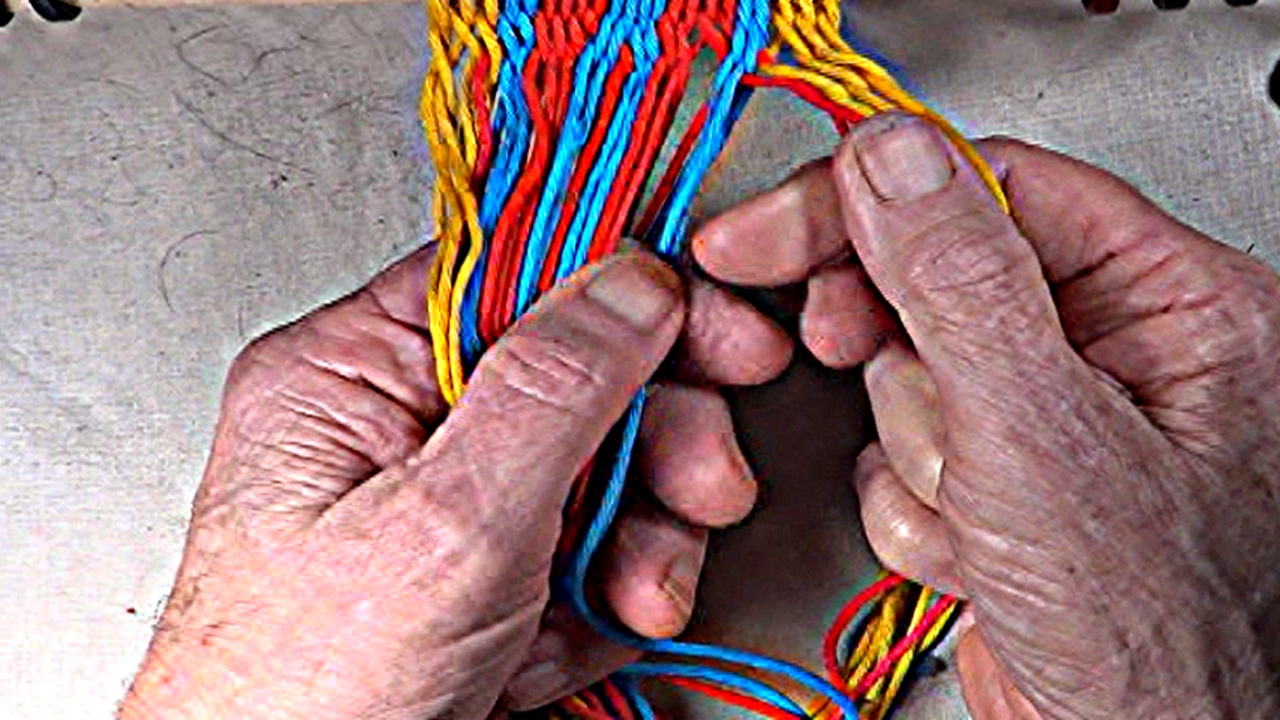

[figure-19] [click here to see video]

Second Pass--Section One

[S] twist twine the first set of twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

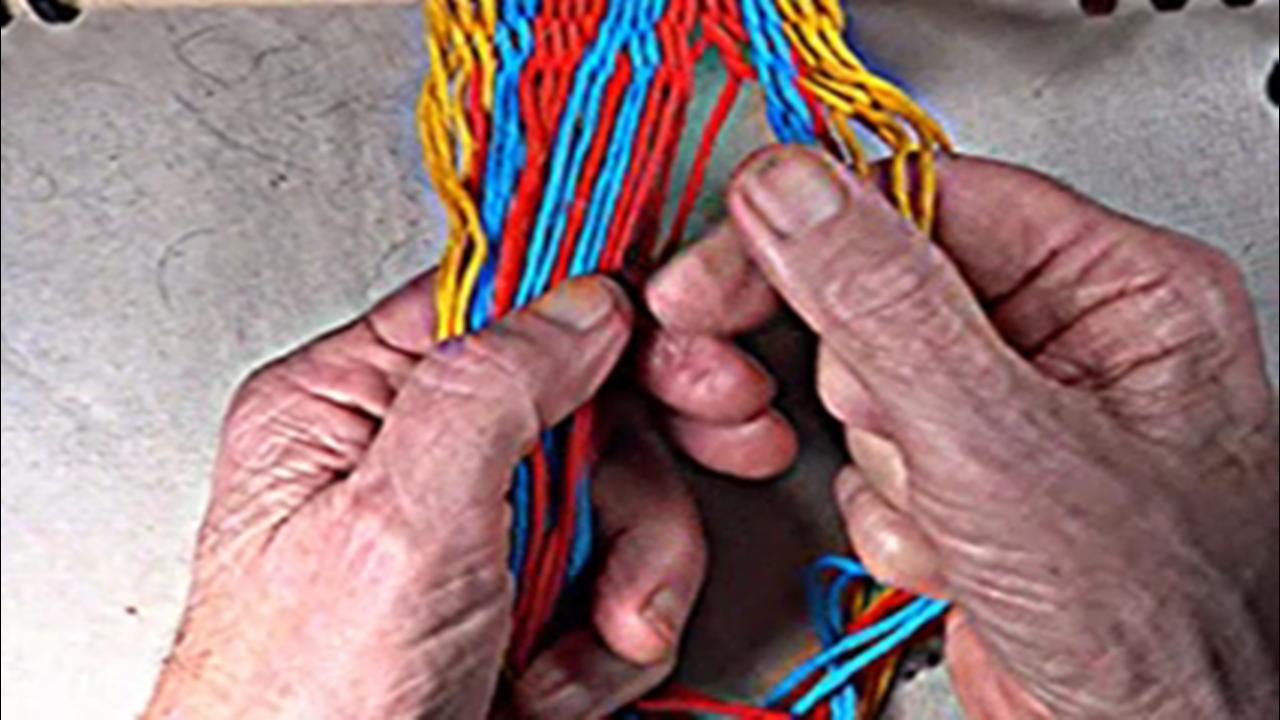

[figure-20] [click here to see video]

Second Pass--Section One

[S] twist interlink the second chevron color band on the right hand side of the workpiece.

Stop when there is one unused strand of the second chevron color band.

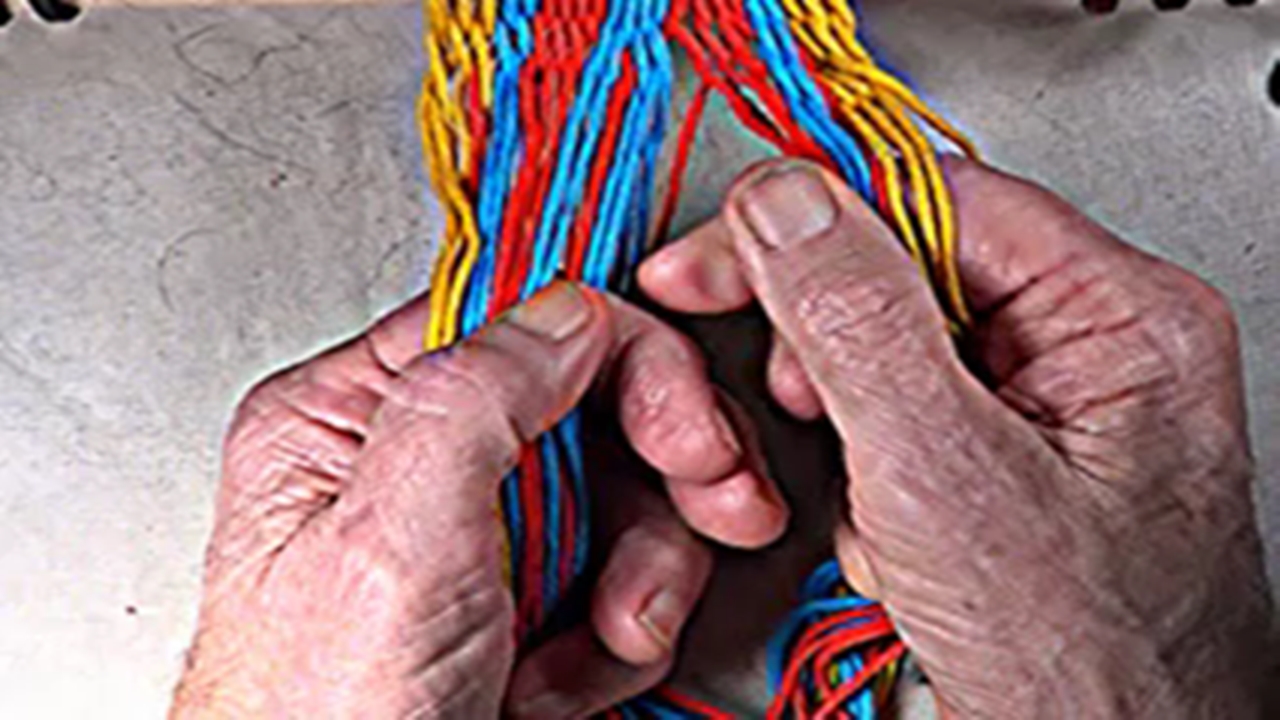

[figure-21] [click here to see video]

Second Pass--Section One

Pass the unused strand through the second set of twining strands.

[figure-22] [click here to see video]

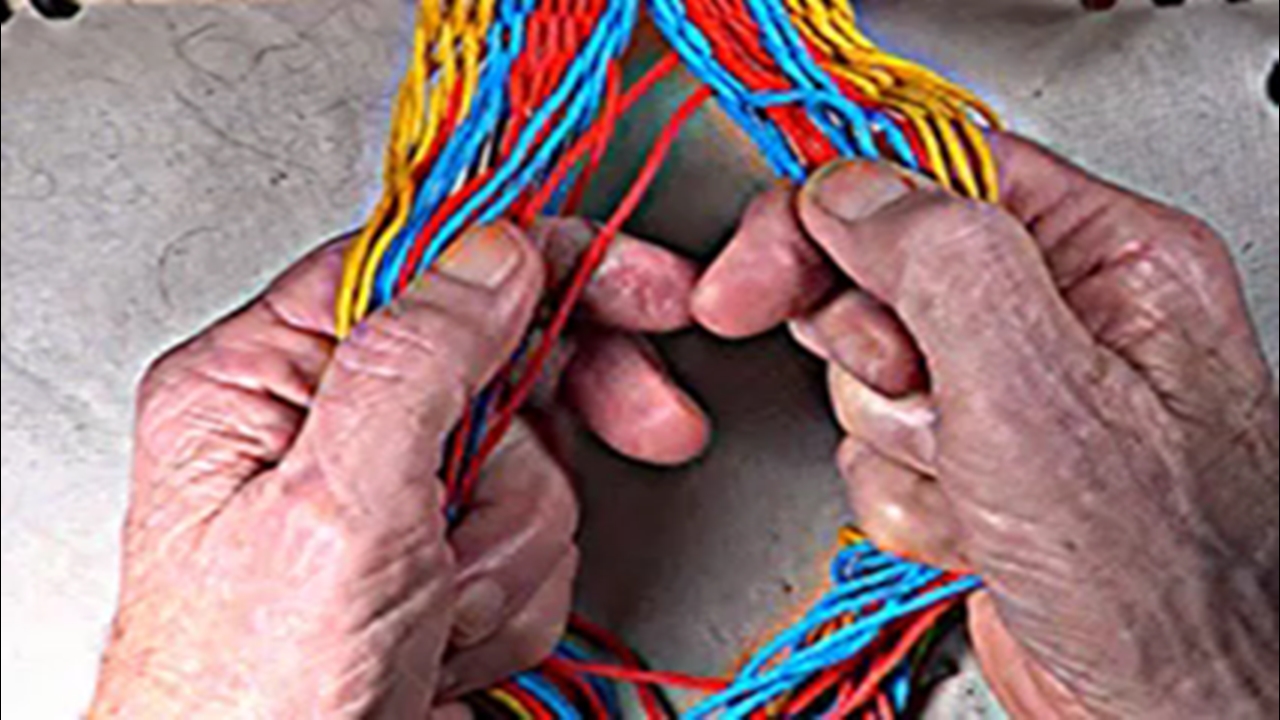

Second Pass--Section One

[S] twist twine the second set of twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[figure-23] [click here to see video]

Second Pass--Section One

Take one [S] twist interlink stitch of the center coclor band.

[OBSERVE] There will be one unused center color band.

[figure-24] [click here to see video]

Second Pass--Section One

Pass the first top shed strand of the left hand side second cheveron color band through the shed of the third set of twining strands to the center color band.

[figure-25] [click here to see video]

Second Pass--Section One

Complete the [S] twist interlink to the center color band.

[figure-26] [click here to see video]

Second Pass--Section One

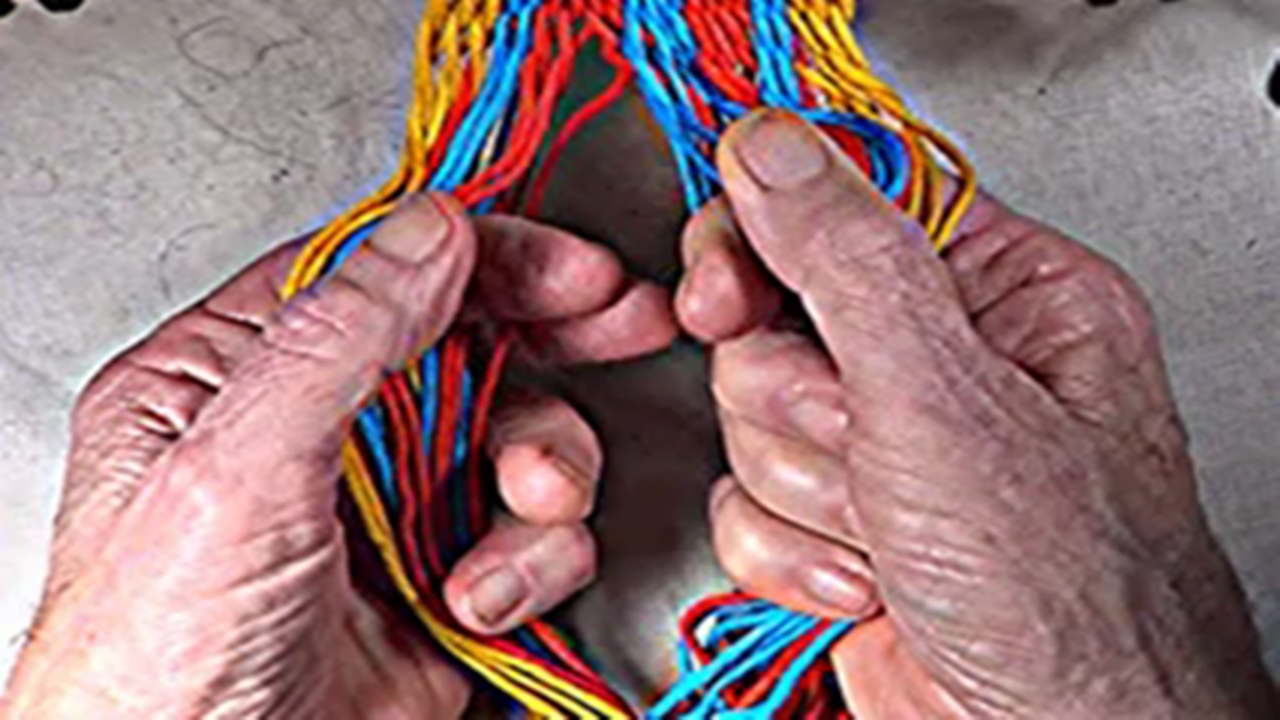

[S] twist twine the third set of twining strands.

[NOTE]the interlink strand acts a weft strand for the twining strands.

[figure-27] [click here to see video]

Second Pass--Section One

[S] twist interlink fingerweaving the left hand side second chevern color band.

Stop when there is one unused strand before the fourth set of twining strands.

[figure-28] [click here to see video]

Second Pass--Section One

Pass the unused strand through the shed of the fourth set of twining strands.

[figure-29] [click here to see video]

Second Pass--Section One

[S] twist twine the fourth set of twining strands

[NOTE]the interlink strand acts a weft strand for the twining strands.

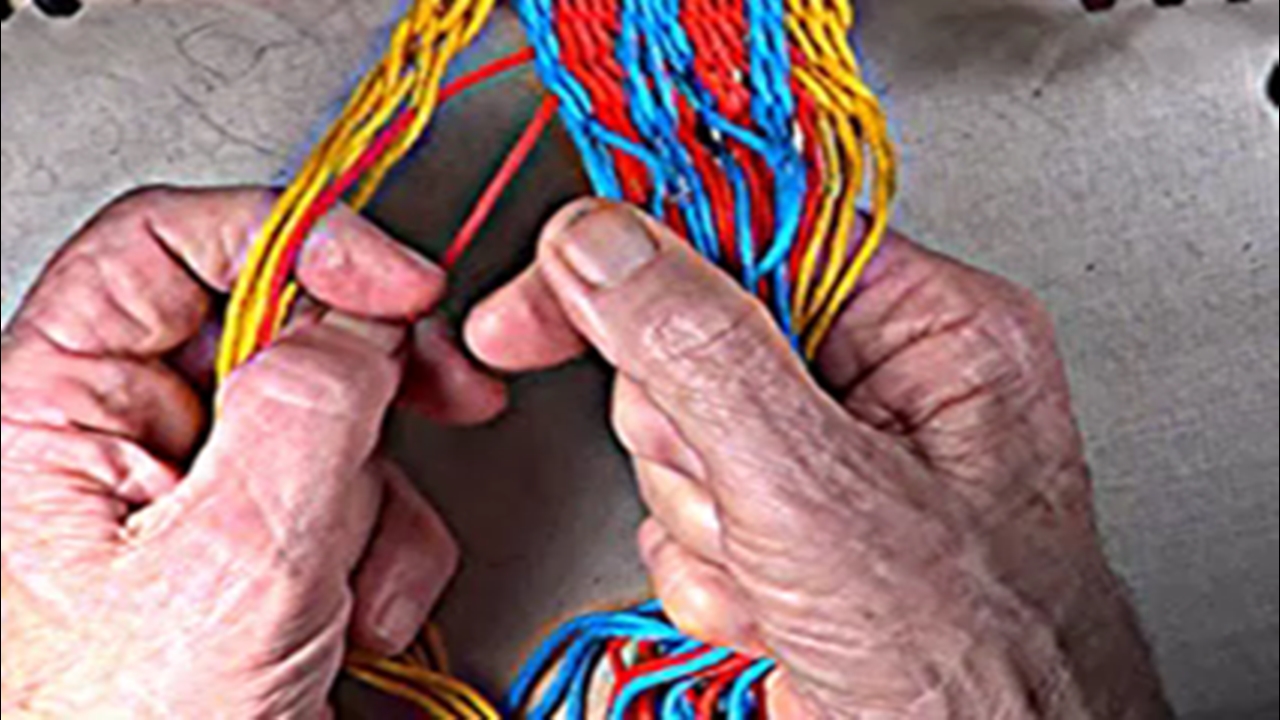

[figure-30] [click here to see video]

Second Pass--Section One

Finish the second pass of section one by interlink fingerweaving the remaining strands between the fourth set of twining strands and the left hand edge.

[figure-31] [click here to see video]

Second Pass--Section One

Set the weave by pulling the layers of the shed in oppoaite directions.

Check to ake sure that there are no loose strands.

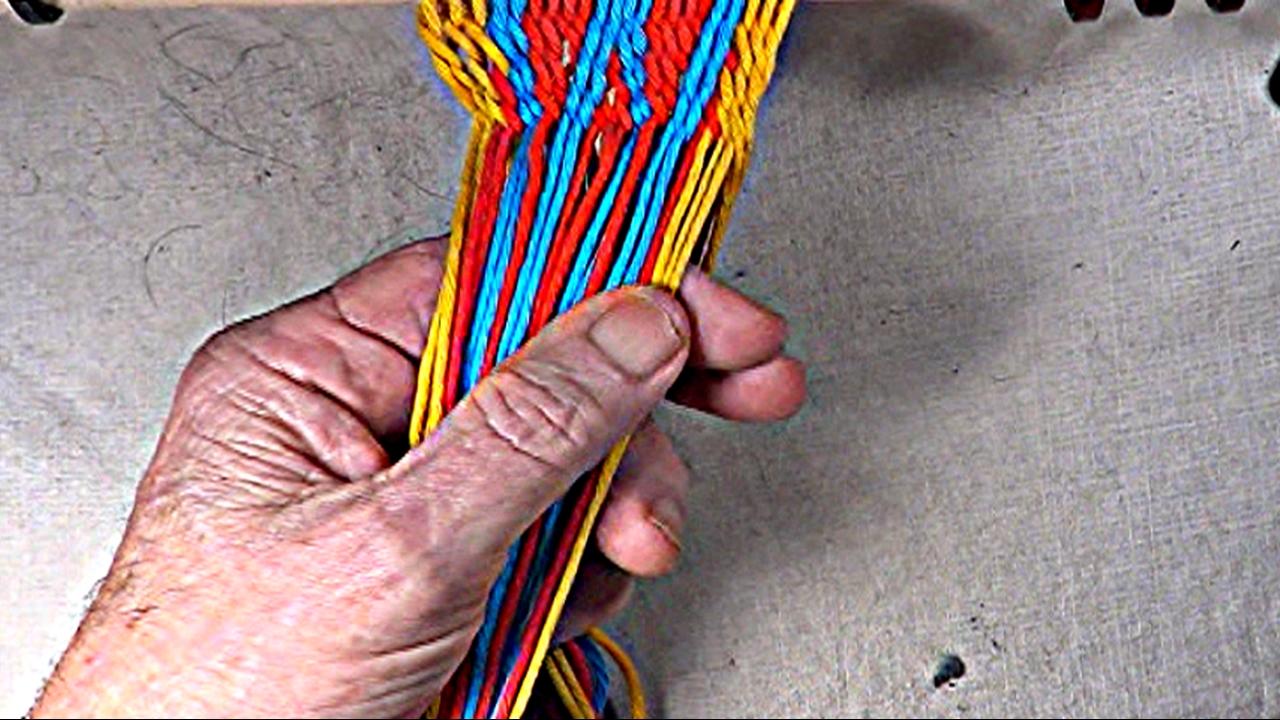

[figure-32] [click here to see video]

First Pass--Second Section

Weave [S] twist interlinked fingerweave the first pass of the second setion.

[figure-33] [click here to see video]

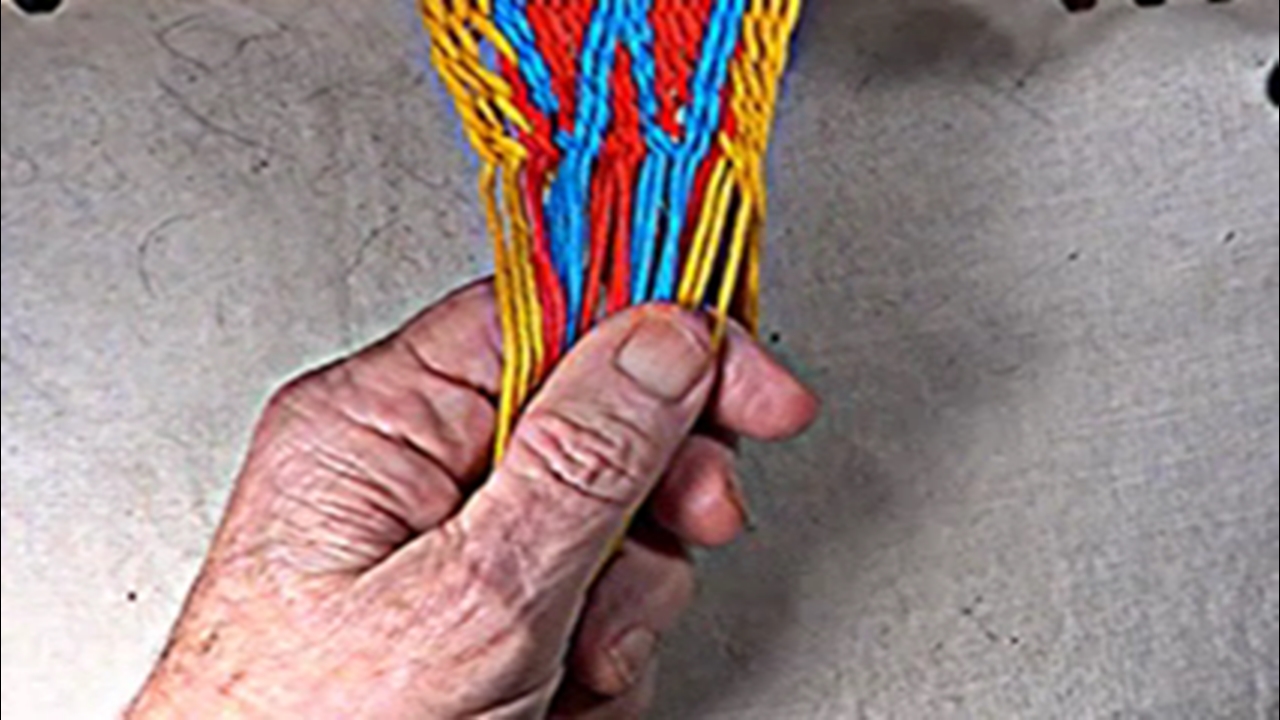

Second Pass--Second Section

Weave the Second Pass--Second Section of [S] twist interlink fingerweaving.

[OBSERVE] This pass of interlinked fingerweaving has the same arangement of strands as the start of the first pass---section one but the colors are reversed.

[figure-34] [click here to see video]

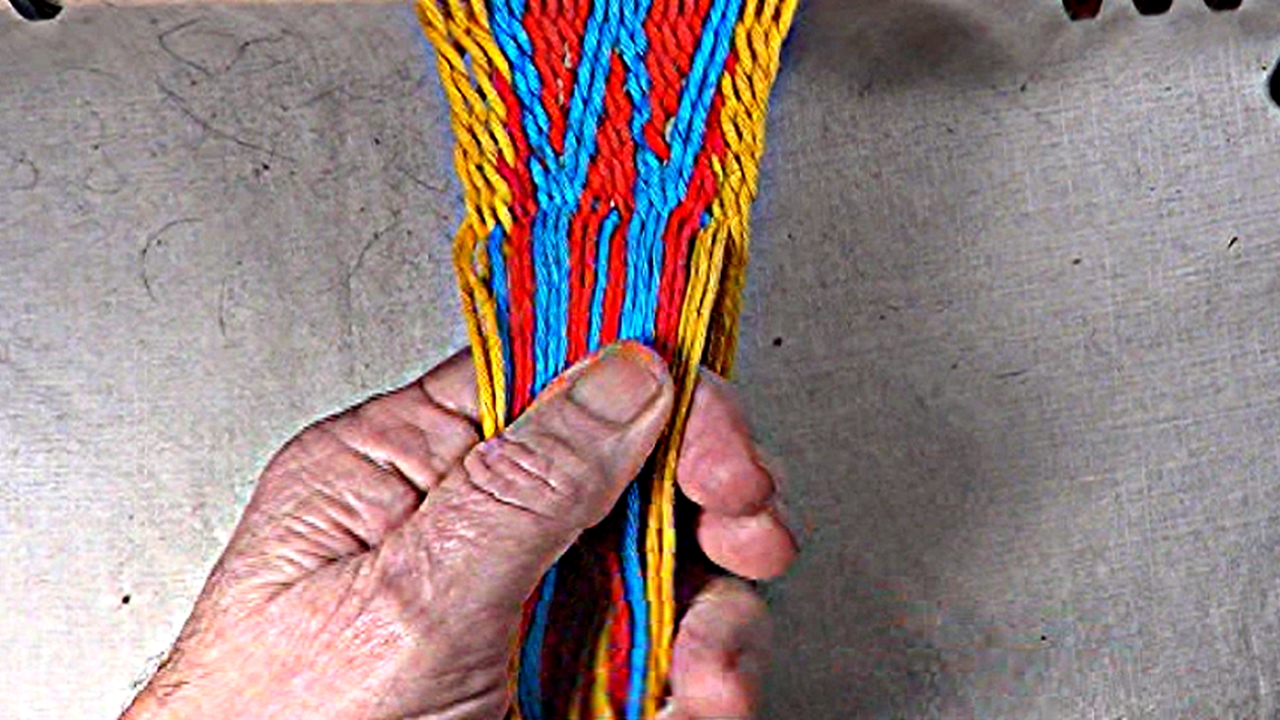

First Pass--Third Section

Weave the First Pass--Third Section of [S] twist interlink fingerweaving.

[NOTE] This pass follows the same steps as the first pass of section one except the colors are reversed.

[figure-35] [click here to see video]

Second Pass--Third Section

Weave the Second Pass--Third Section of [S] twist interlink fingerweaving.

[figure-36] [click here to see video]

First Pass--Fourth Section

Weave the First Pass--Fourth Section of [S] twist interlink fingerweaving.

[figure-37] [click here to see video]

Second Pass--Third Section

Weave the Second Pass--Fourth Section of [S] twist interlink fingerweaving.

Continue to add rows of weaving until the workpiece has reached the desired length,

[figure-38] [click here to see video]
